pharma microbiology testing usp 71 sterility testing of
pharmaceutical products
- Ultra-small design reduces the space and airflow interference of
the ultra-clean console;
- The waterproof design of the fuselage prevents liquid from
penetrating into the interior of the instrument;
- Large LCD display, operating status indication function, clock
function;
- Four-speed direct speed control with speed memory function;
- The stainless steel case is mirror polished for easy cleaning and
disinfection.
- The stainless steel case meets the requirements of the experimenter
for the sterile laboratory;
- Phase voltage control stepless speed regulation operation control
is convenient;
- Turbine deceleration system, reduce machine working noise, increase
torque capacity to ensure safe operation;
Turbine deceleration system The power system uses high power to
ensure high viscosity
- One-button automatic pinch function, easy to operate, linear pump
head design, no special experience in placing the catheter.
- Stainless steel shell design, easy to clean.
- using a large-size color touch LCD screen, real-time display of the
current speed, pump head state, touch operation is simple and
flexible.
- The pressure safety protection can be turned on. When the outlet
end pipe pressure exceeds the set value, the running peristaltic
pump is stopped.
- Over-current, over-voltage, overload, and blocking multiple safety
protection functions.

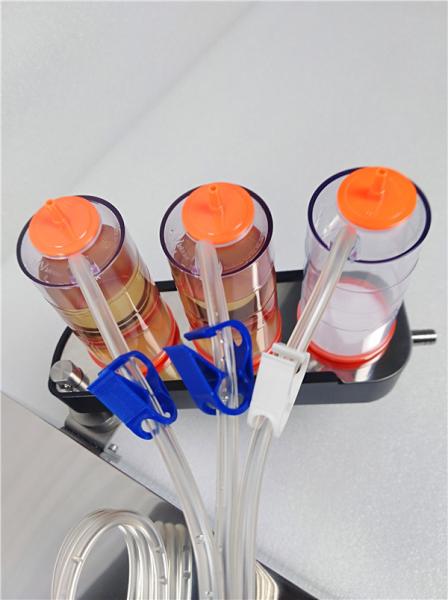

Sterility Test Pump Structure
The WINTEAM sterility test pump consists of a main unit, a
suspension bracket, a drain tank, a foot switch and a peristaltic
pump head.
Sterility Test Pump Working Environment
(1) Environmental requirements: in a clean laboratory or in a clean
bench.
(2) Ambient temperature: 4 ° C ~ 25 ° C
(3) Relative humidity: ≤90% RH or less (anhydrous beads
condensation phenomenon)
(4) Working power supply: 220V/50HZ
(5) Electrical safety: The instrument requires grounding and
reliable grounding. The grounding impedance is ≤ 4n, and the wire
diameter of the grounding wire is 1.6mm or more.
Applications
1. Pharmaceutical industry:sterility test pump sterility inspection
and microbial limit inspection of purified water, water for
injection, sterile preparations (large infusion, small injection,
powder, biological products, blood products, ophthalmic
preparations, maintenance liquids, etc.);
2. Medical device industry: sterility inspection and microbial
limit inspection of purified water, water for injection, syringe,
infusion set, blood transfusion device, intravenous catheter, etc.;
3. Food and beverage industry;
4. Environmental protection industry, etc.
| Name | sterility test pump |
| Working power supply: | AC220V/50Hz |
| Power: | 200W |
| Peristaltic pump speed: | 15 ~ 240rpm |
| Runner: | 3 wheels |
| Height (with bottle holder): | 39cm |
| Dimensions: | 34*40*17cm |
| Weight: | 17Kg |
